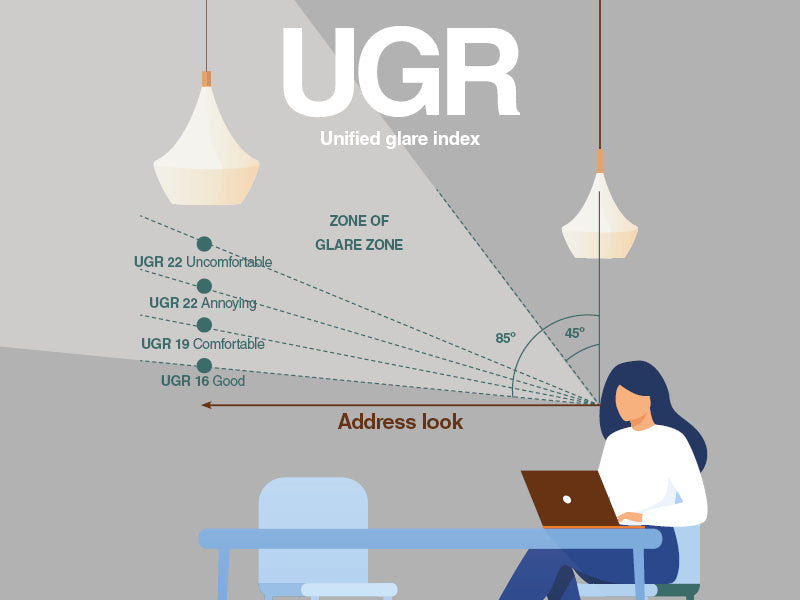

What is UGR

UGR (Unified Glare Rating) is a metric used to measure the subjective experience of glare from a lighting installation, especially in indoor environments. Glare is an unpleasant visual sensation that can cause discomfort, eyestrain, and even headaches. UGR helps lighting designers and engineers to optimise the lighting setup, so that it provides sufficient illumination while minimising glare.

The UGR value ranges from 5 to 40, with lower values indicating less glare. A UGR value of 19 or below is generally considered comfortable for most tasks. However, the optimal UGR value depends on the type of space and the activities performed therein. For instance, a UGR value of 16 may be suitable for an office environment, while a UGR value of 22 may be acceptable for a warehouse or a factory.

UGR is influenced by several factors, such as the luminance of the light source, the reflectance of the surfaces in the room, and the viewing angle of the observer. In general, the brighter the light source and the more reflective the surfaces, the higher the UGR value. Similarly, the more oblique the viewing angle, the lower the UGR value.

To calculate the UGR value, lighting designers use specialised software that takes into account the luminance distribution of the luminaires, the reflectance of the surfaces, and the geometry of the room. By adjusting the parameters of the lighting system, such as the position, orientation, and intensity of the luminaires, the designer can achieve the desired UGR value.

In addition to UGR, other metrics are used to evaluate the quality of lighting, such as color rendering index (CRI), illuminance, and correlated colour temperature (CCT). Together, these metrics help to ensure that the lighting system provides sufficient visibility, color fidelity, and visual comfort for the intended users.

For example, in an office environment, the UGR value should be low enough to prevent glare on computer screens, while still ensuring sufficient light levels for reading and writing. In a retail environment, the UGR value should be low enough to enhance the appearance of merchandise, while still providing enough contrast for customers to make informed purchasing decisions.

In summary, UGR is a crucial concept in lighting design that helps to minimize glare and enhance visual comfort. By optimising the UGR value, lighting designers can create environments that are conducive to productivity, safety, and wellbeing. It is important for lighting designers to consider the intended use of the space, the reflectance of surfaces, and the luminance of light sources to ensure the optimal UGR value is achieved.
