Name: HCP-603010 - White Triac + 0-1/10v Dimmable Linear Module with Standard Diffuser
Brand: Havit Commercial
SKU: HCP-603010-600
Availability: InStock

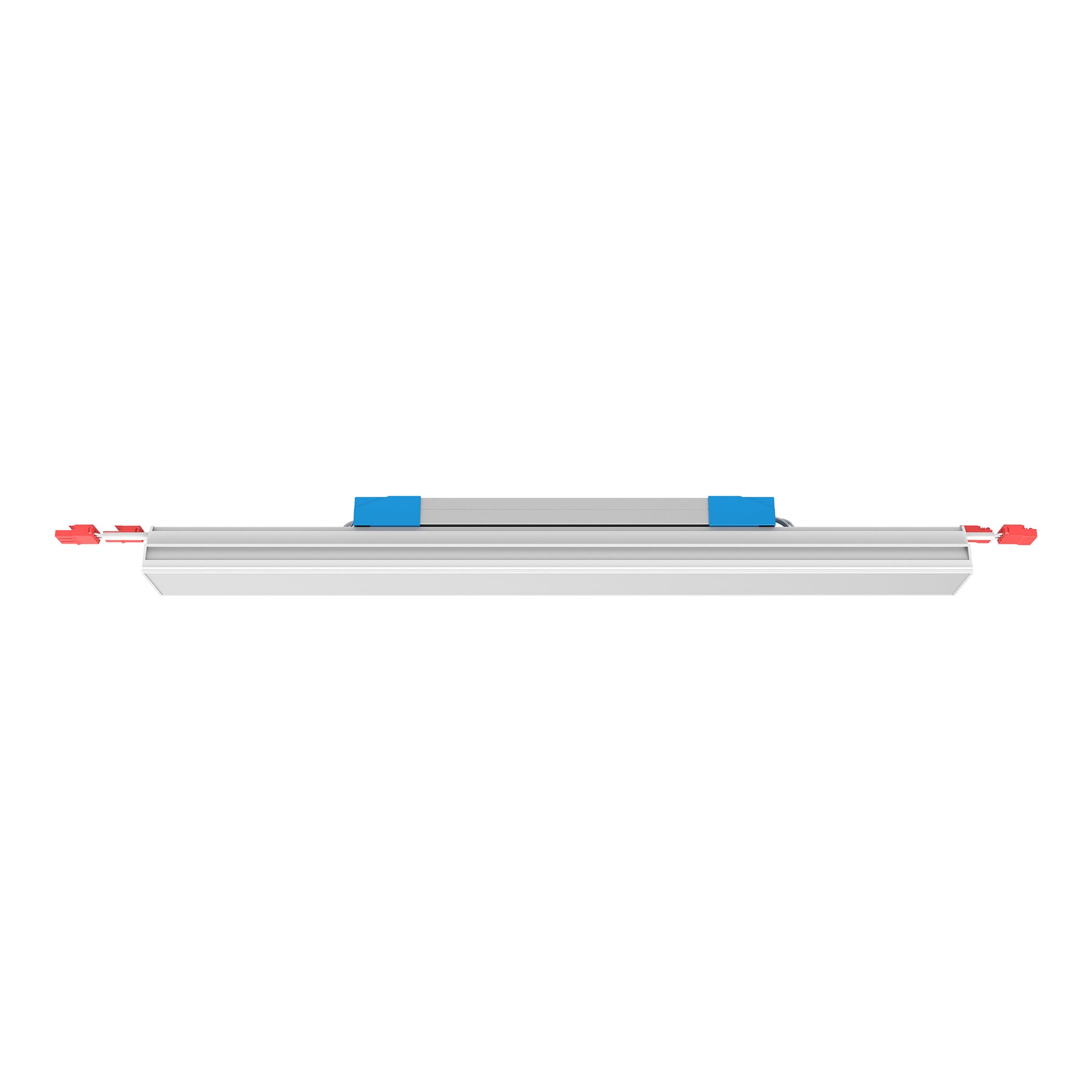

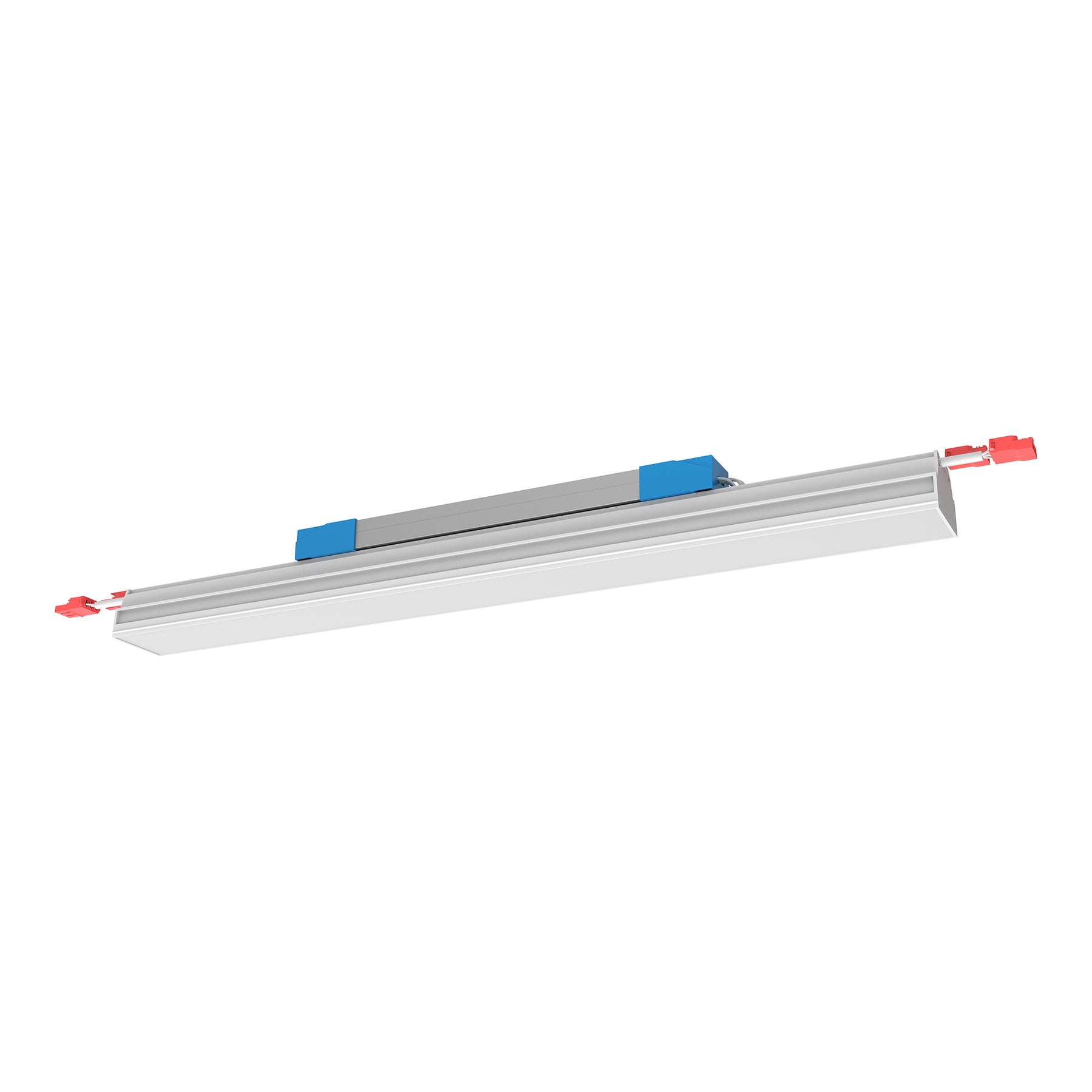

HCP-603010 - White Triac + 0-1/10v Dimmable Linear Module with Standard Diffuser

Linear Module with Standard Diffuser
Aluminium White Finish

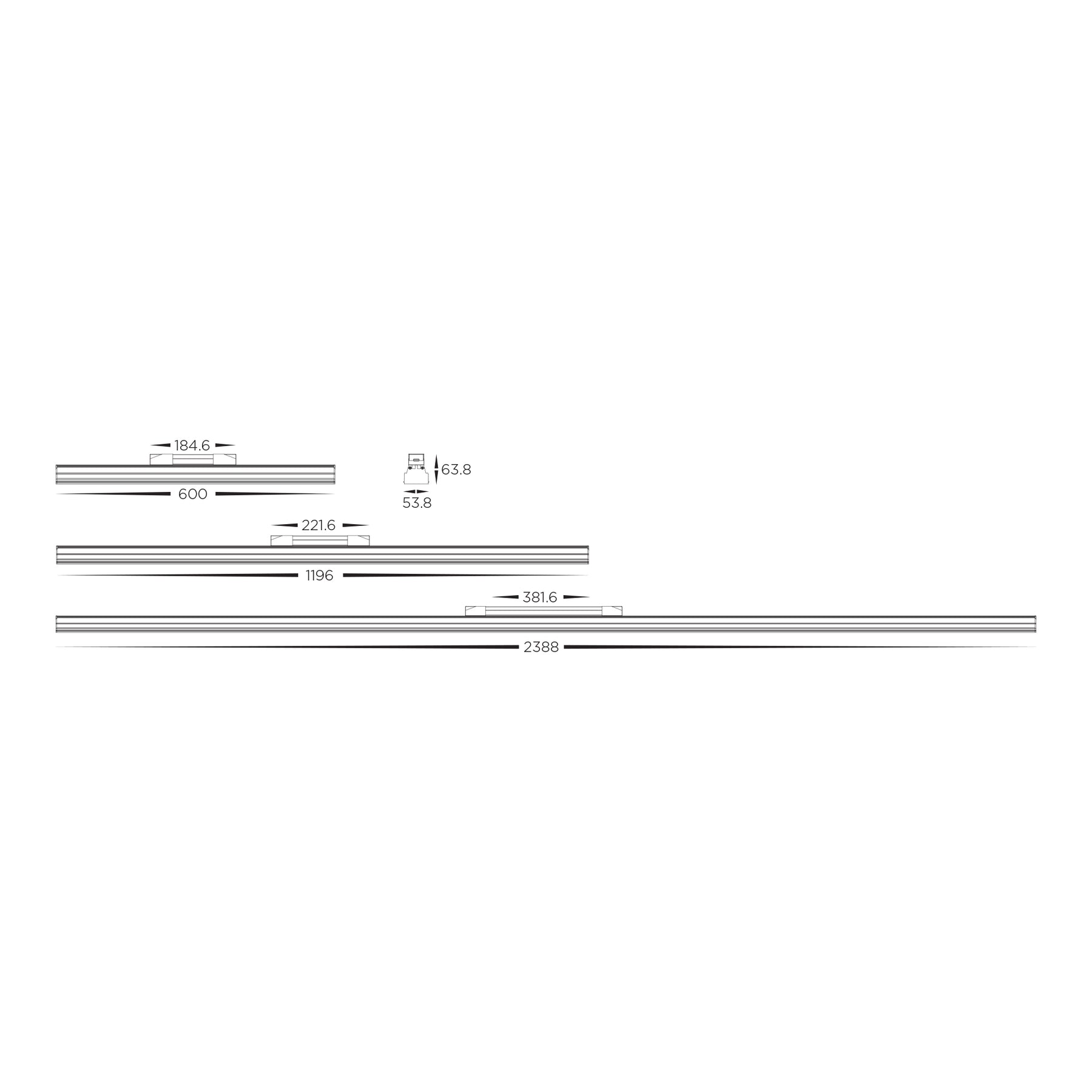

Available in 600mm, 1196mm & 2388mm
Triac + 0-1/10v Dimmable
120° Beam angle
IP Rating: IP20
Plug & Play Connectors to make longer lengths
To be used with HCP-603100-PM or HCP-603100-2.5M
Tri Colour - 3000k, 4300k, 6500k
Input voltage: 240v AC
Built in 17w, 34w, 68w
5 years replacement warranty

Configure your linear module pendant

Product Details

Part Number	Wattage	Colour Temp.	Lumens	Length
HCP-603010-600	17w	3000k 4300k 6500K	1510lm 1600lm 1523lm	600mm
HCP-603010-1200	34w	3000k 4300k 6500K	3014lm 3190lm 3045lm	1196mm
HCP-603010-2400	68w	3000k 4300k 6500K	6035lm 6380lm 6090lm	2388mm

Data Sheet

Download

IES Files

Install Sheet

Downloads
