Name: HCP-602030 - Black Triac + 0-1/10v Dimmable Linear Module with Honeycomb Diffuser
Brand: Havit Commercial
SKU: HCP-602030-600
Availability: InStock

HCP-602030 - Black Triac + 0-1/10v Dimmable Linear Module with Honeycomb Diffuser

Linear Module with Honeycomb Diffuser
Aluminium black finish

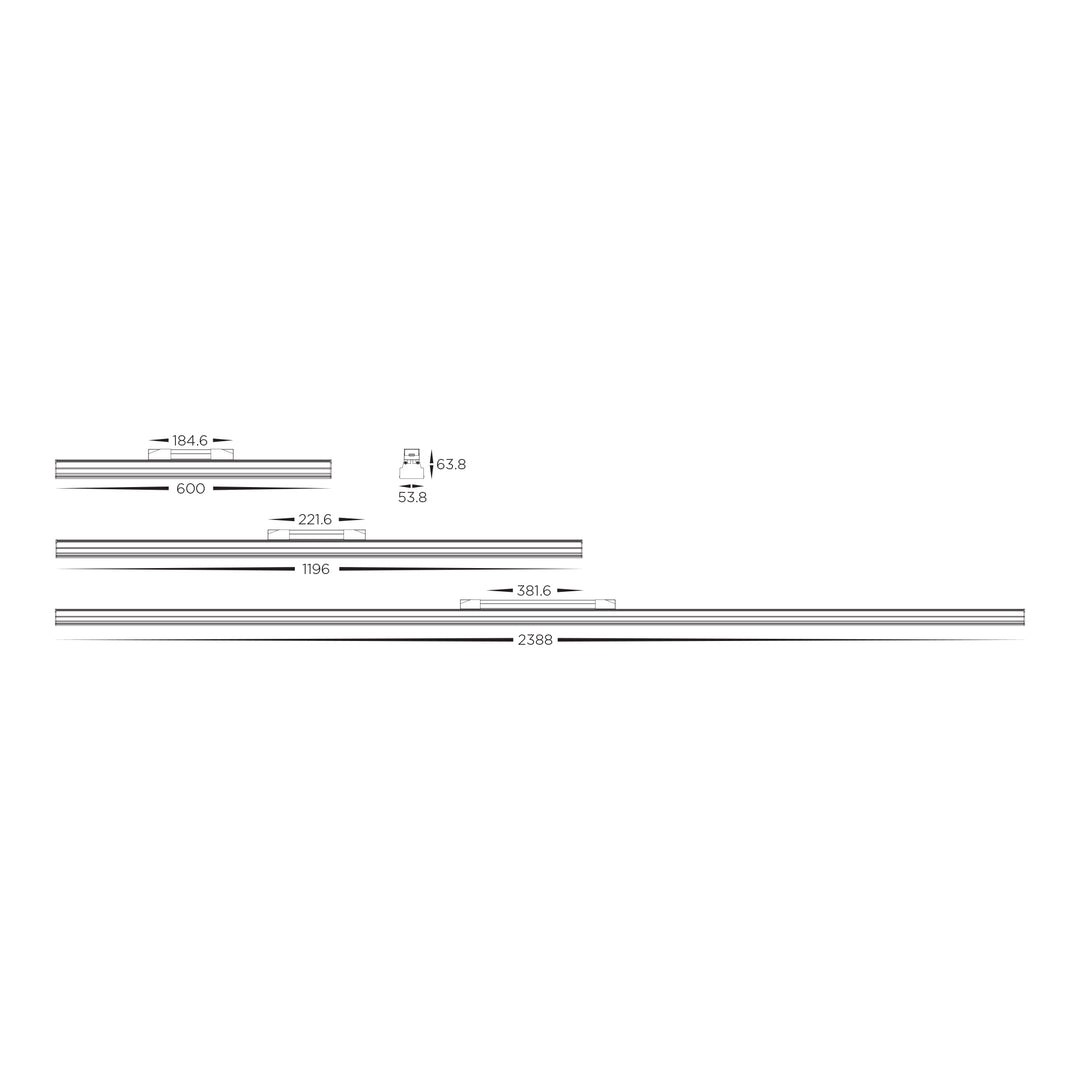

Available in 600mm, 1196mm & 2388mm
Triac + 0-1/10v Dimmable
60° Beam angle
UGR<19
IP rating: IP20
Plug & Play Connectors to make longer lengths
To be used with HCP-602100-PM or HCP-602100-2.5M
Tri Colour
3000k, 4300k, 6500k
Input voltage: 240v AC
Built in 17w, 34w, 68w
5 years replacement warranty

Configure your linear module pendant

Product Details

Part Number	Wattage	Colour Temp.	Lumens	Length
HCP-602030-600	17w	3000k 4300k 6500Kk	710lm 820lm 750lm	600mm
HCP-602030-1200	34w	3000k 4300k 6500k	1400lm 1630lm 1490lm	1196mm
HCP-602030-2400	68w	3000k 4300k 6500k	2800lm 3250lm 2960lm	2388mm

Data Sheet

IES Files

Install Sheet
