Name: HCP-602040 - Black Triac + 0-1/10v Dimmable Linear Module with Reflector Diffuser
Brand: Havit Commercial
SKU: HCP-602040-600
Availability: InStock

HCP-602040 - Black Triac + 0-1/10v Dimmable Linear Module with Reflector Diffuser

Linear Module with Reflector Diffuser
Aluminium black finish

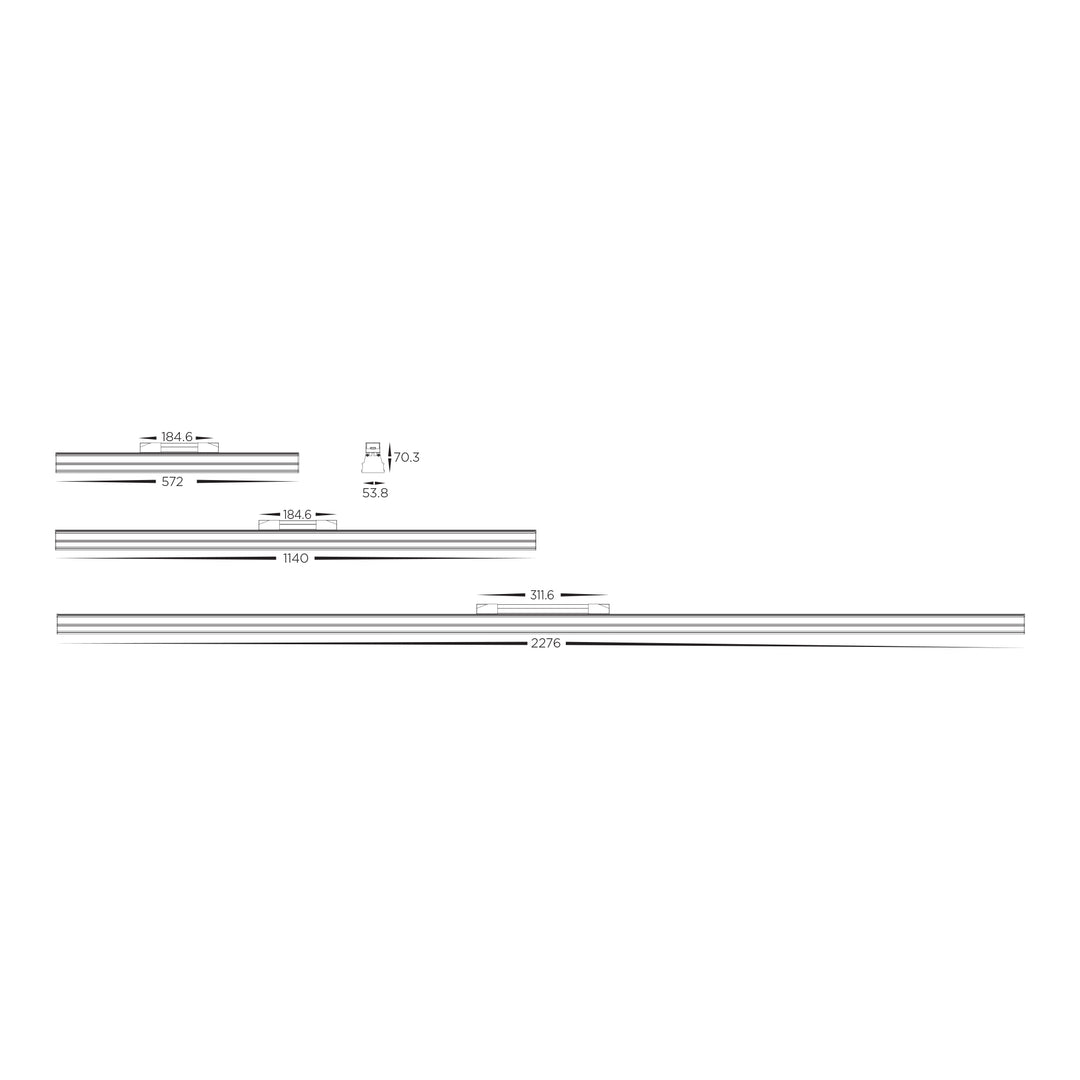

Available in 572mm, 1140mm & 2276mm
Triac + 0-1/10v Dimmable
38° Beam angle
UGR<10
IP rating: IP20
Plug & Play Connectors to make longer lengths
To be used with HCP-602100-PM or HCP-602100-2.5M
Tri Colour
3000k, 4300k, 6500k
Input voltage: 240v AC
Built in 12w, 24w, 48w
5 years replacement warranty

Configure your linear module pendant

Product Details

Part Number	Wattage	Colour Temp.	Lumens	Length
HCP-602040-600	12w	3000k 4300k 6500k	720lm 970lm 820lm	572mm
HCP-602040-1200	24w	3000k 4300k 6500k	1490lm 2010lm 1710lm	1140mm
HCP-602040-2400	48w	3000k 4300k 6500k	2980lm 4010lm 3420lm	2276mm

Data Sheet

IES Files

Install Sheet
